AOK Air Operated Diaphragm Pump

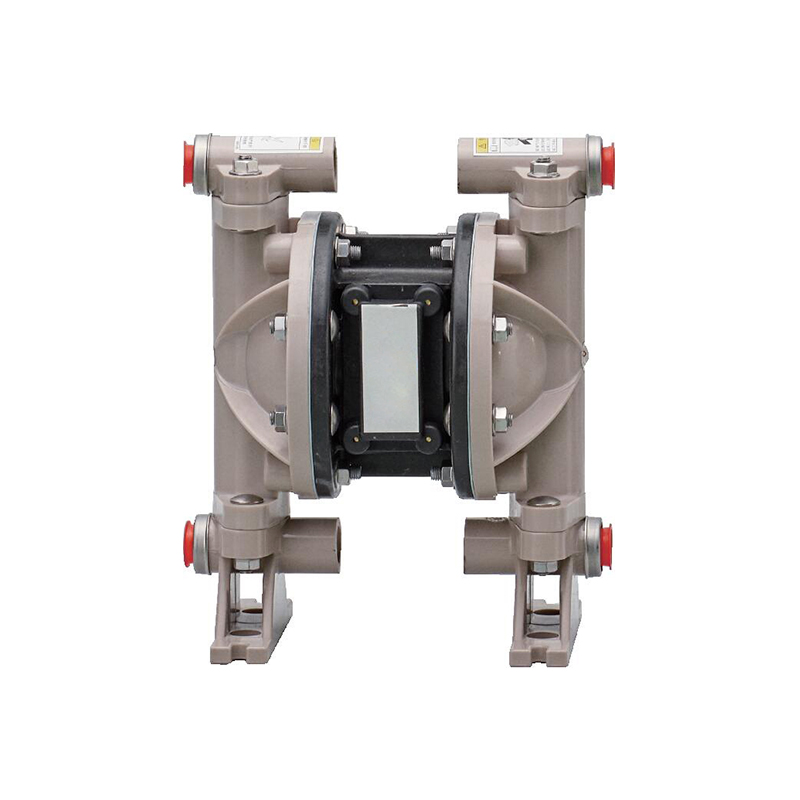

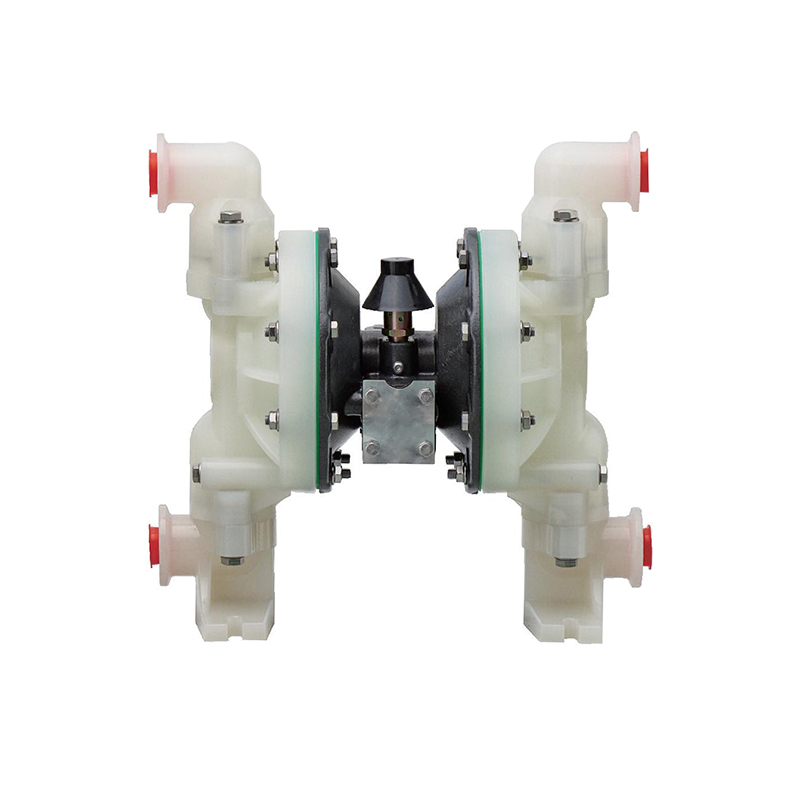

Double Inlet & Outlet Air Operated Diaphragm Pump AOE15 25

Air operated diaphragm pump is a kind of 1/2 Inch and 1inch standard pneumatic diaphragm pump using a new piezoelectric polymer material. The PVDF vacuum pump diaphragm is not only small density light weight, but also good flexibility, and has good chemical stability.

Double in double out pump series





Model

1/2″

1″

 Maximum one sided  flowL/Min

24.6

89

Max service pressure(Mpa)

0.69

0.83

Fluid inlet and outlet dimensionsinch

1/2″

1″

Motor body material

Polypropylene

Aluminum

Manifold fluid cover material

Polypropylene

Polypropylene

Weight (Kg)

2.7

8.5

Max Particle Diameter (mm)

2.4

3.2
