AOK Air Operated Diaphragm Pump

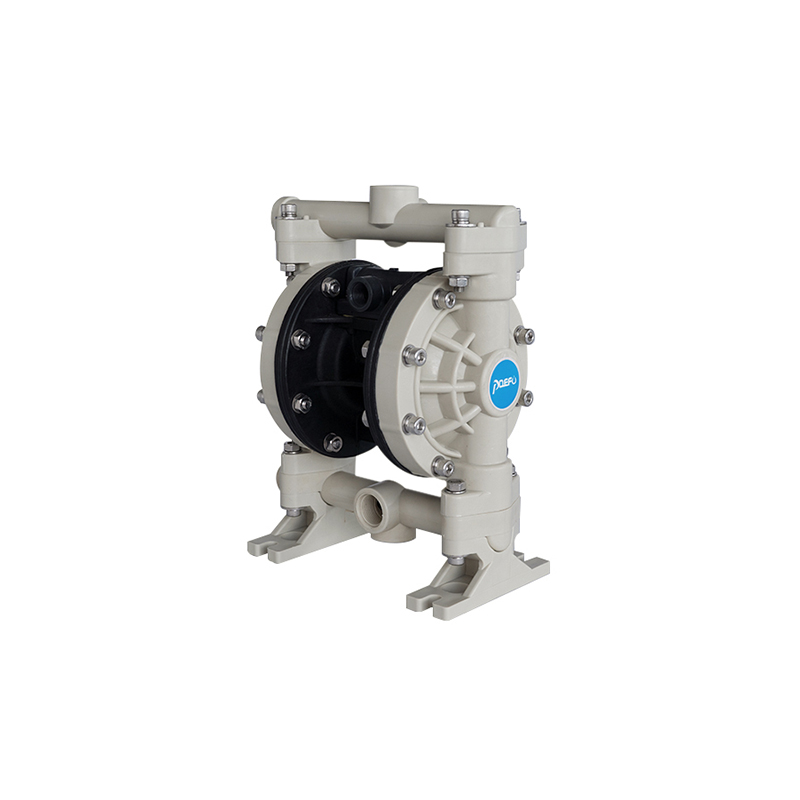

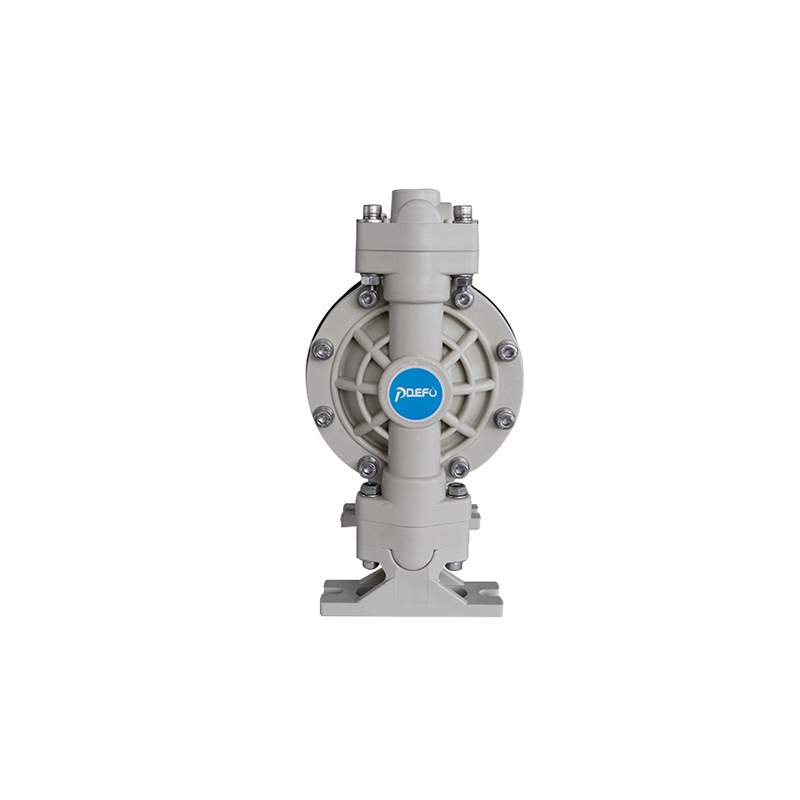

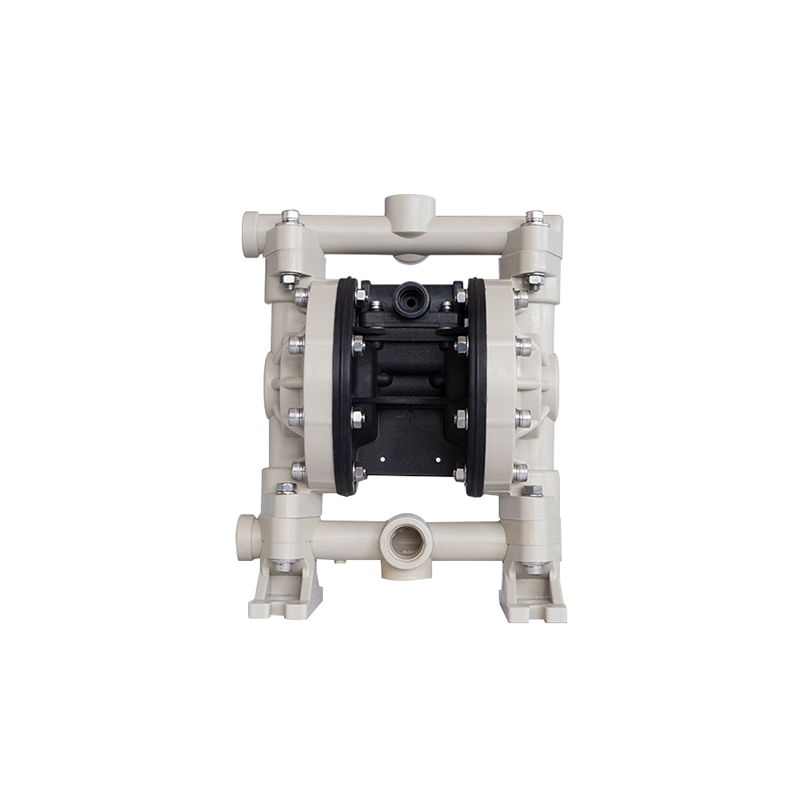

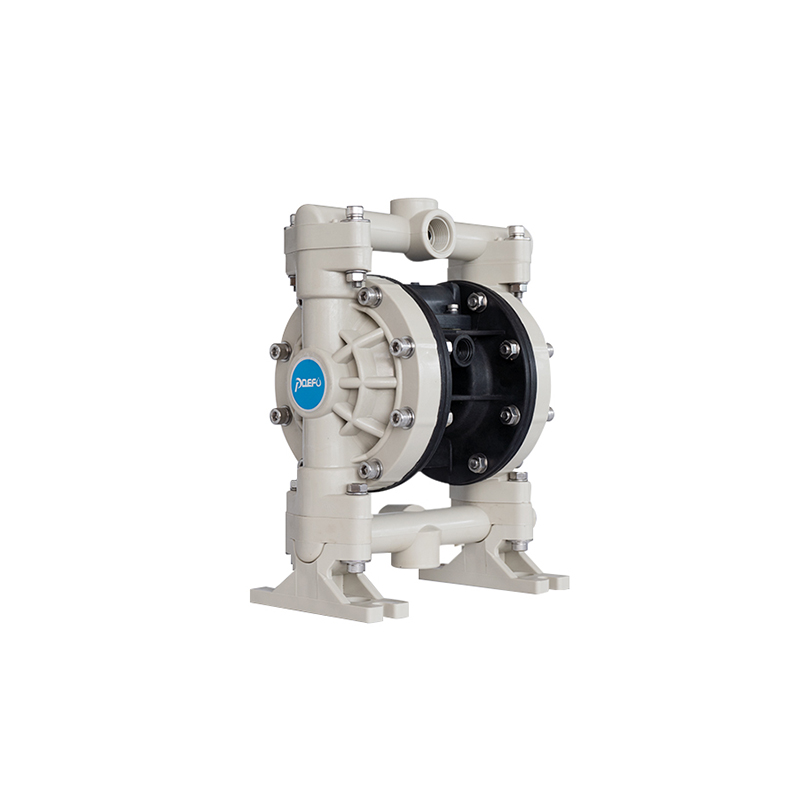

Polypropylene Air Operated Diaphragm Pump AOK15

AOK15 Polypropylene air diaphragm pump is a kind of air operated double diaphragm pump for sulphuric acid with good chemical stability, has strong acid and alkali corrosion resistance.

AOK15-PP Product Description


AOK series pump is an air operated double diaphragm pump, which is driven by air. It is a kind of positive displacement pumps which volume changes caused by compressing diaphragms in both side. This pump not only can exhaust the flow liquid, but also can convey some uneasy flowed medium, with the merits of self priming pump, slurry pump and impurity pump, etc

Features:

1. Idling ,Self-priming , Submerse capability.

2. pumps provide stall-free, ice-free operation.

3. pumps offer the ability to vary the flow outlet and discharge pressure diaphragm pumps are CE certified .

4. Bolt joint design provides even sealing pressure for optimal performance.

5. Diaphragm, ball and ball seat adopt imported materials with longer service life.

6. Due to their pneumatic motor, they could be used in potentially explosive areas.

7. Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.

8. The air diaphragm pump has the function of self priming without rotating parts. It can achieve dry priming and wet priming, which self -priming height is 5m and 8m respectively.

What is the double diaphragm pumps use for?

1- The pump can deliver peanut butter, mashed tomatoes, mashed potatoes, jam, chocolate, as well as syrup and molasses, etc.

2- oil paint, gum, pigment, coating, Various adhesives and glues, etc.

3- various kind of glaze slip for tile, porcelain, brick and pottery.

4- Various emulsions and stuffing.

5- Various highly toxic, flammable and volatile liquids.

6- Various highly acidic, basic and corrosive medium.

7- The transportation of high temperature liquid, The maximum liquid temperature can be 150℃.

8- AOK air operated diaphragm pump can be matched with plate-and-frame filter press for sewage treatment.

Hot PP AODD Pump AOK15:

Model

AOK15



Inlet/ Outlet size

mm

15

inch

1/2

Flow Rate



m3/h

3.42

L/min

57

Head (m)

84

Max. Suction Lift (m)

7.6m (wet) ;4m(dry)

Max. Particle Diameter (mm)

2.5

Max. Air Pressure (kg/cm²)

8.4

Max. Air Consumption (m³/min)

0.56

Diaphragm Material

Teflon, Santoprene, Viton, Buna-N etc

Pump Spare Parts

Diaphragm, valve balls and seats, O-ring etc

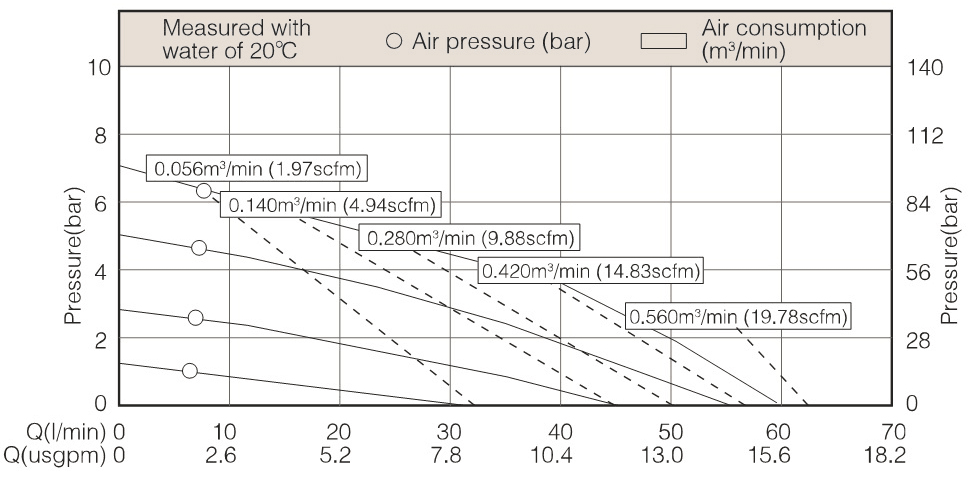

Performance curve:

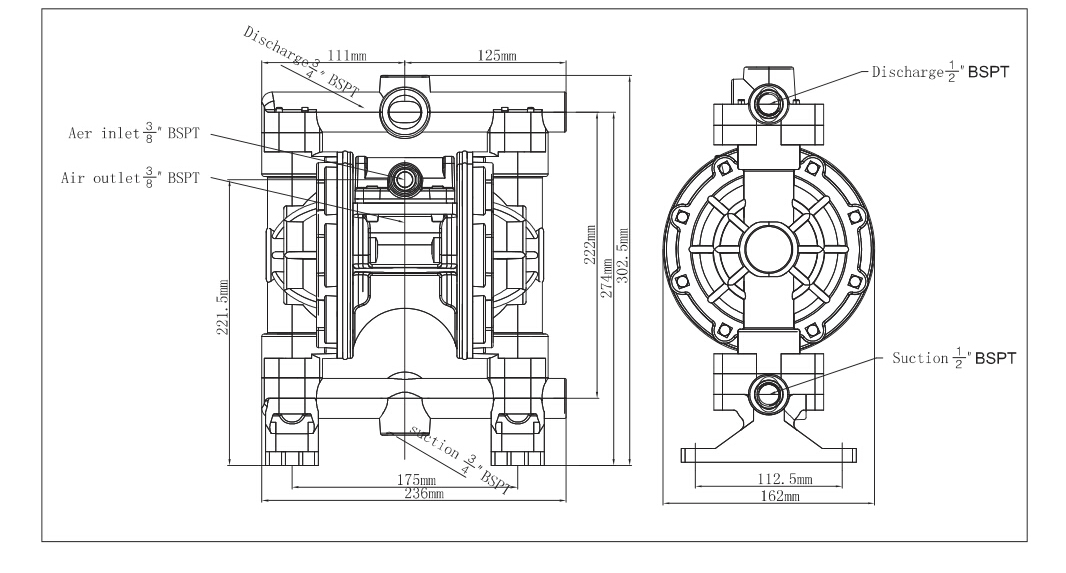

Installation size:

 Typical Installation Guide

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8
