AOK Air Operated Diaphragm Pump

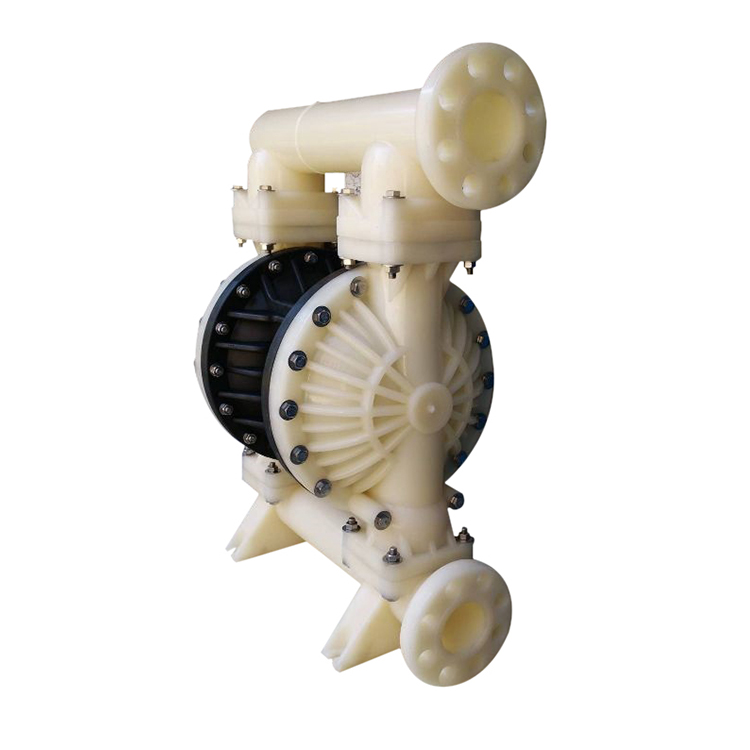

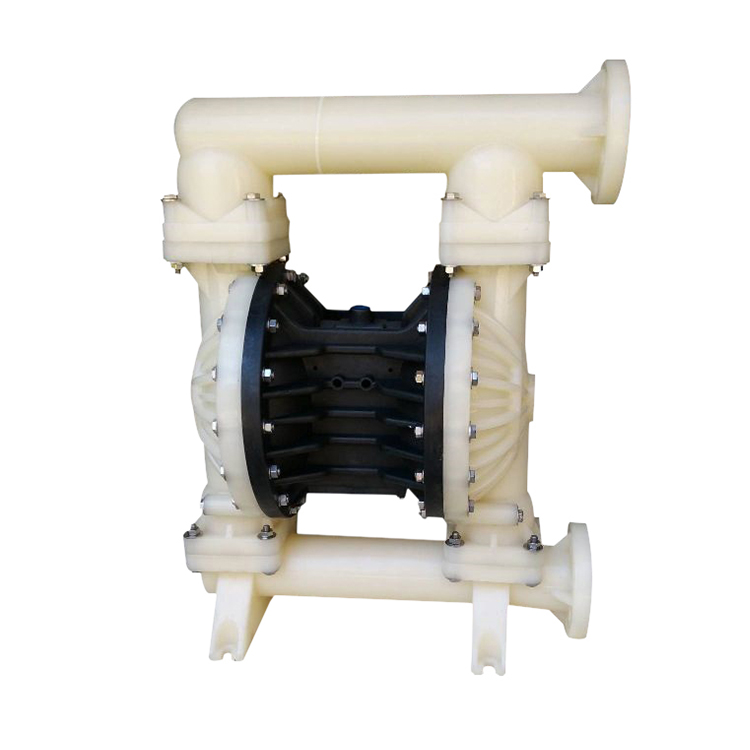

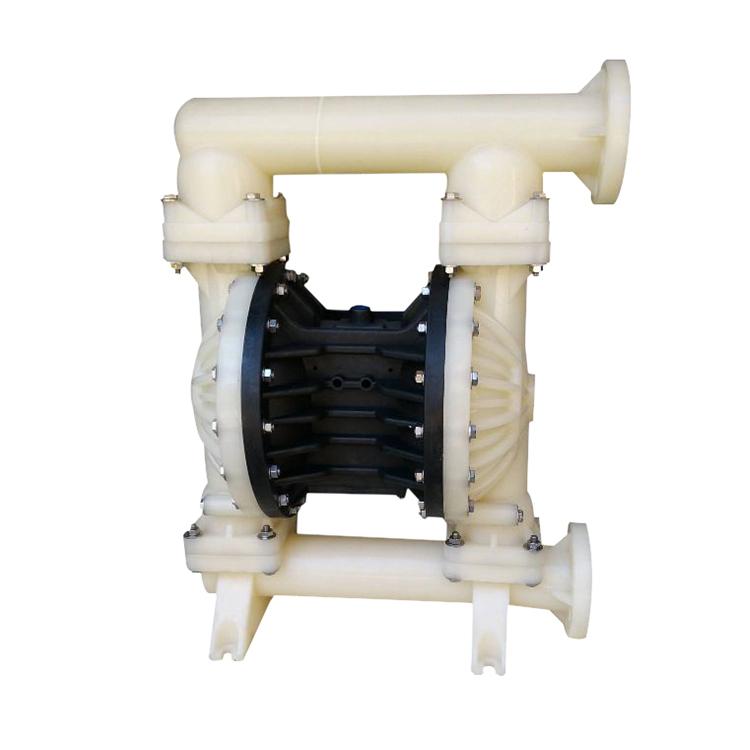

Polypropylene Air Operated Diaphragm Pump AOK80

80mm plastic irrigation pneumatic duplex diaphragm pump pumping liquid medium is not only the flow of liquid, but also can transport some not easy to flow of liquid medium, 3 inch Polypropylene air driven diaphragm pump has self-priming pump, mud pump, impurities pump and other comprehensive advantages.

AOK80PP Product Description


AOK80 is a large air operated double diaphragm pump, which is powered by air and is suitable for medium and high viscosity fluids. It has the characteristics of simple structure, few wearing parts, convenient installation and maintenance, and high performance.

AOK80PP Performance parameter:

Model

AOK-80PP



Inlet/ Outlet size

mm

80

inch

3

Flow Rate



m3/h

63.6

L/min

1060

Head (m)

84

Suction Stroke (m)

8

Max. Particle Diameter (mm)

9.4

Max.Air Pressure (kg/cm²)

8.4

Max.Air Consumption (m³/min)

9.8

Diaphragm

Teflon, Santoprene, Buna-N, Viton, Hytrel, etc.

Valve ball/seat

Santoprene, Hytrel, Teflon, Viton, etc.

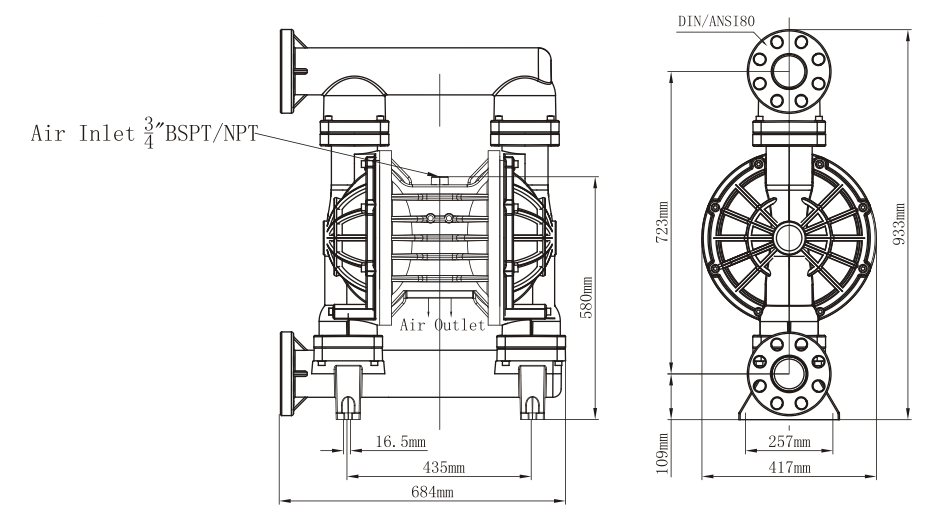

Installation Size:

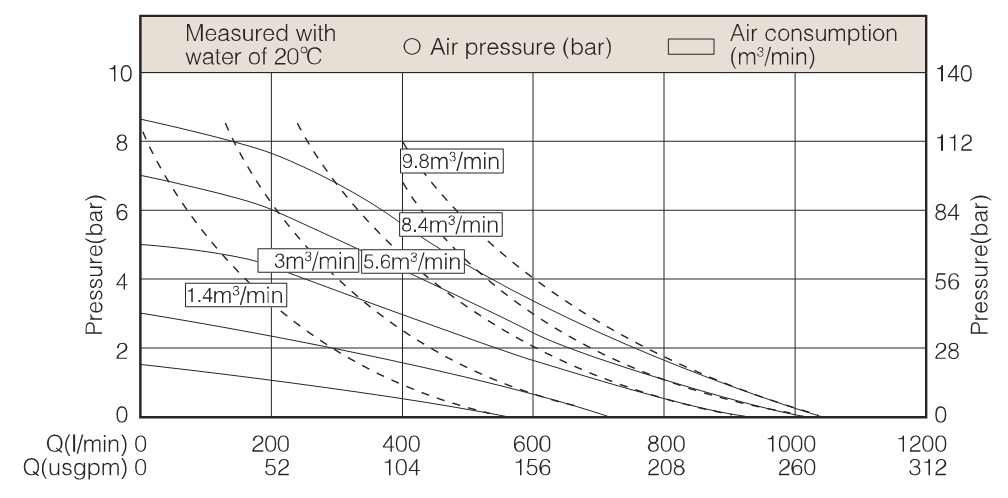

Performance Curve:


More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8

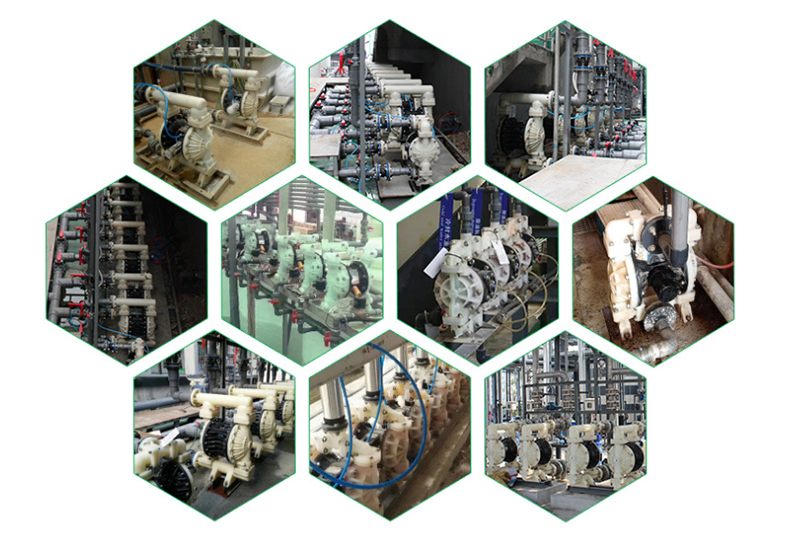

Applications:

Petrochemical industry

Construction industry

mining industry

Metallurgical industry

Foundry industry

Dyeing industry

Water treatment

Automotive industry

Features:

1- The pump can work under water.

2- Has self-priming function.

3- Small size, light weight, easy to move and carry.

4- Can run empty, no danger.

5- It has good chemical stability, excellent chemical resistance, and good heat stability.

6- It can pass through the liquid containing particles and is not easy to be blocked.

7- The fluid that can be transported is extremely wide, from low-viscosity to high-viscosity, from low-corrosive to highly-corrosive.

8- Very low shear force on the material.

9- The pump will not overheat.

Material Table

(More pumping medium pls contact us to confirm the suitable material)

Item

Pump Body

Diaphragm

   Medium

Polypropylene

Aluminum

PVDF

Stainless Steel

Buna-N

Geolast

Viton

Teflon

Chloronaphthalene

×

×



B

D

D

C

A

Acetic Acid _ 50%



×



A

C

C

C

A

Ammonium Bicarbonate



B





A

A

A

A

Ammonium Chloride

A

×

A

B

A

A

A

A

Amyl Borate









A

B

A

A

Aniline Dyes



B



B

C

C

B

A

Barbeque Sauce







A

A

A

D

A

Beer

A

A

A

A

C

A

A

A

Calcium Chloride

A

A

A

A

A

A

A

A

Carbonic Acid (liquid)

A





B

B

A

A

A

Diesel Oil

B

A

A

A

A

C

A

A

Honey

A

A



A

D

A

D

A

Glue

A

A



B

A

A

A

A

Formic Acid

A

×

A

C

C

B

C

A

Lactic Acid

A

A

A

A

B

B

A

A

Hydrochloric Acid 30%

B

×

A

×

C

C

B

A

Sulfuric Acid 50%

A

×

A

×

C

B

A

A

A : Excellent - Recommended ;B : Good - minor to moderate effect; C : Poor - Moderate to severe effect; D : Unsatisfactory - not recommended
