AOK Air Operated Diaphragm Pump

Aluminum Alloy Air Operated Diaphragm Pump AOK50

AOK50 High Viscosity Medium Air Operated Reciprocating Self Priming Diaphragm Pump without oil lubrication, even idling on the pump without any impact.

AOK50-AL Product Description


Air-Operated Double-Diaphragm (AODD) pumps are classified as reciprocating, positive-displacement-style pumps. They operate by displacing fluid from one of its two liquid chambers upon each stroke completion. To operate, the AODD pumps require a given amount of pressure (measured in pounds per square inch) and air volume (measured in cubic feet per minute) to deliver the proper amount of fluid.  AOK50 Aluminum pumps achieve flow rates of up to 587 LPM(2586GPM) and offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation and batching in Ceramic, Paint, Oil & Gas, Chemical and Petrochemical markets.

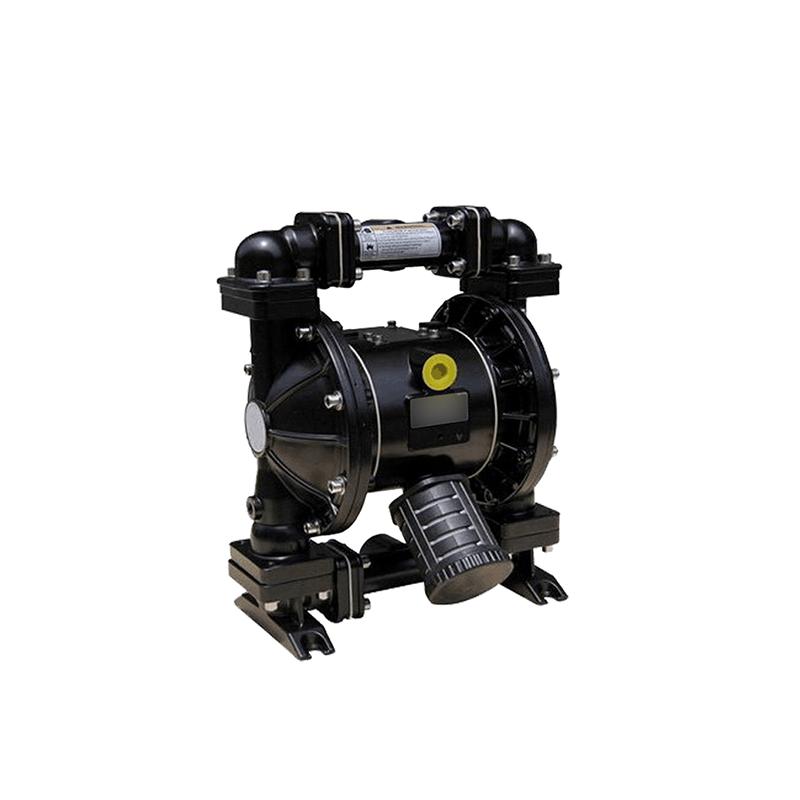

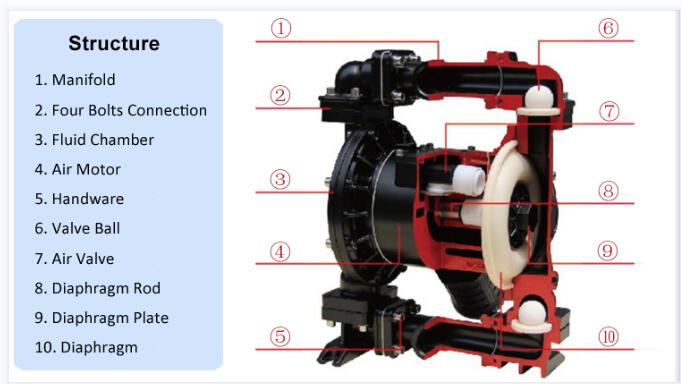

AOK50 Product Picture Structure Of Diaphragm Pump

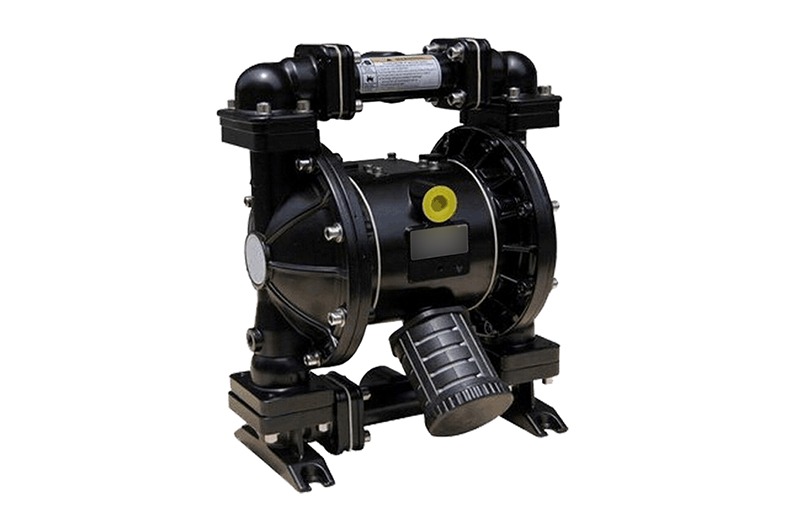

Hot Aluminum AODD Pump AOK50:

Model

AOK50-AL



Inlet/ Outlet size

mm

50

inch

2

Flow Rate



m3/h

35.22

L/min

587

Head (m)

84

Suction Stroke (m)

8

Max. Particle Diameter (mm)

6

Max.Air Pressure (kg/cm²)

8.4

Max.Air Consumption (m³/min)

2.8

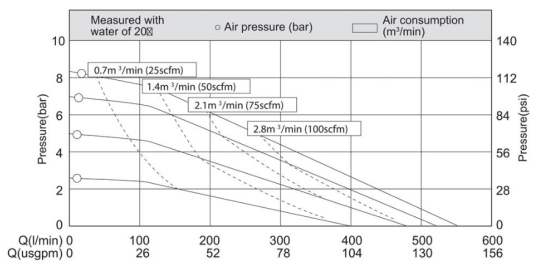

Performance Curve:

Performance Curve

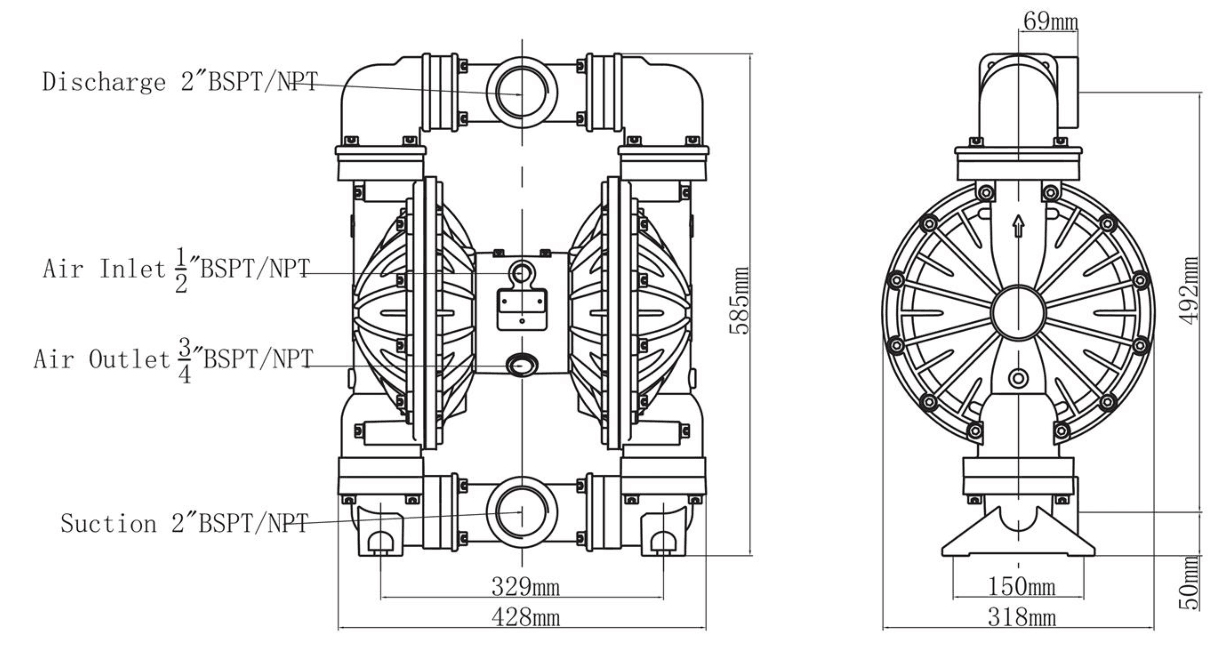

Installation Size:

Installation SizeDiaphragm Pump Key Features:

Idling ,Self-priming , Submerse capability.

Sensors and stroke counters are available

Provide stall-free, ice-free zero leak operation.

Epoxy-coated air section for tough environmental conditions.

Low shear force , not easy to damage the material structure.

Bolt joint design provides even sealing pressure for optimal performance

Modular air valve, low pulsation operation, providing smooth and rapid changeover.

No electricity . It's safe and reliable while using in the flammable and explore place .

Diversity of material, no rotating parts, applicable to various erosive situations.

Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.

Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.

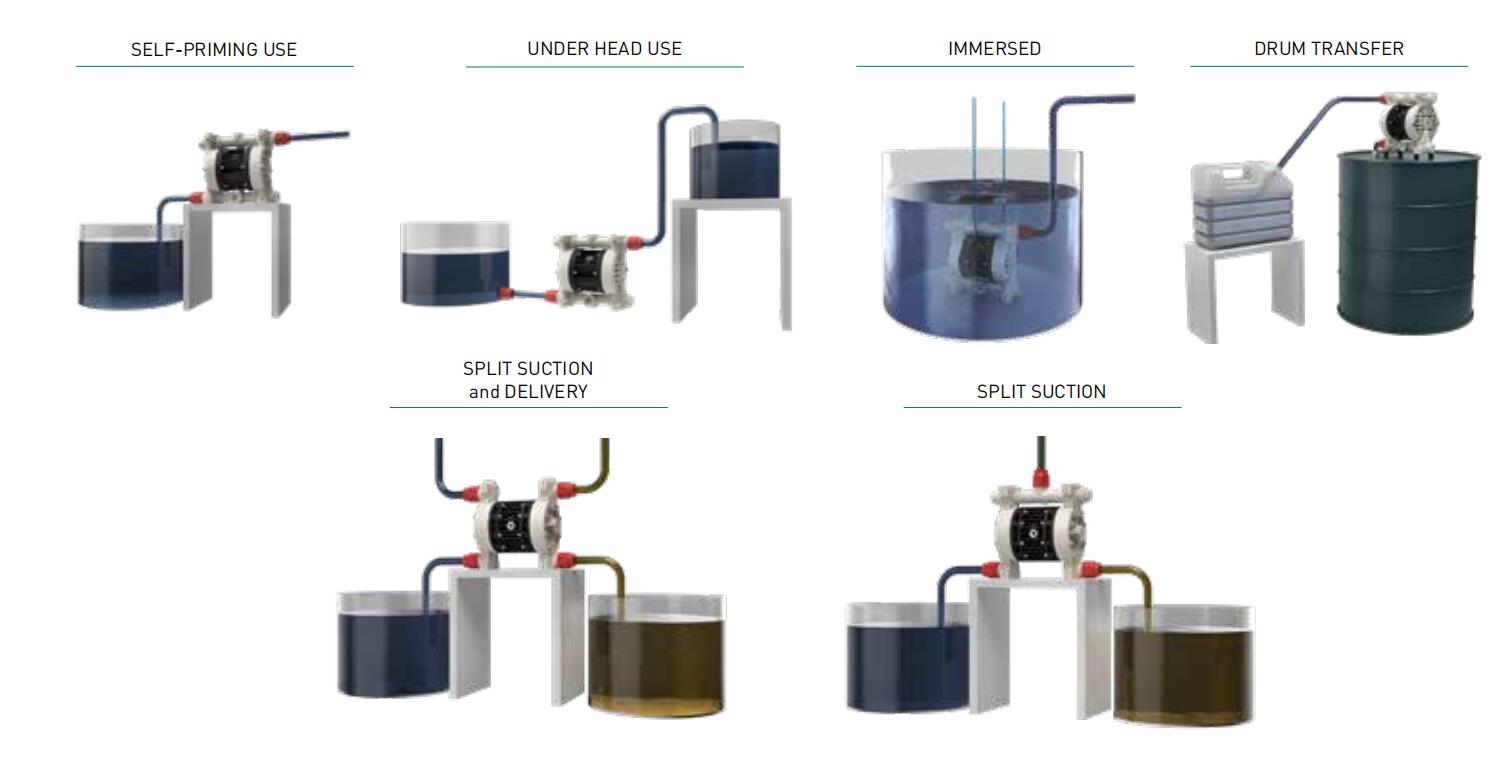

Installation Method And Application

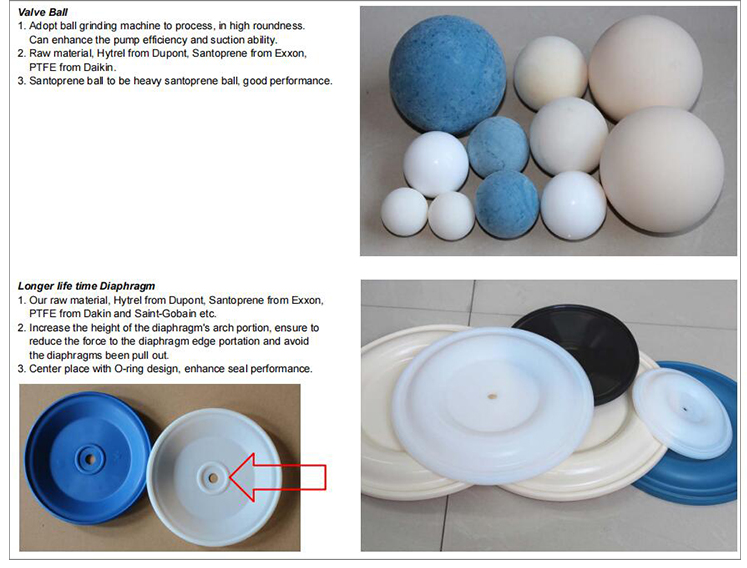

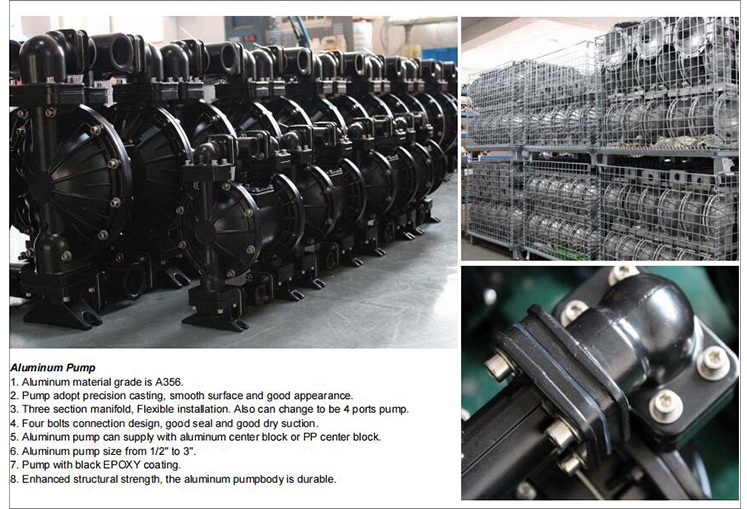

Raw Materials of AODD Pump:

Raw Materials Of AODD PumpRaw Materials Of AODD Pump

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8
