AOK Air Operated Diaphragm Pump

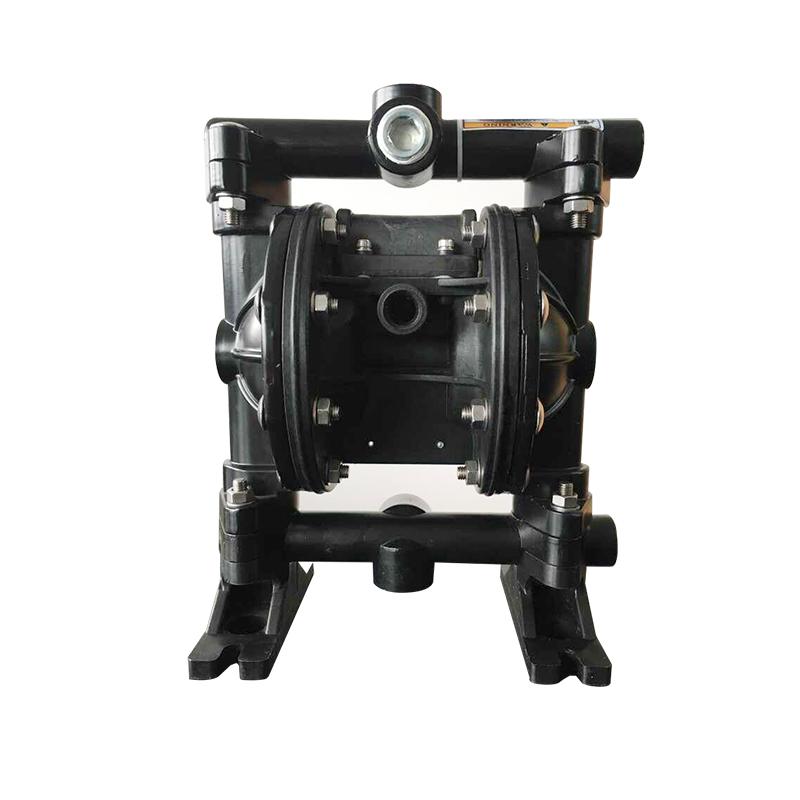

Aluminum Alloy Air Operated Diaphragm Pump AOK15

Reciprocating aluminum alloy air operated double diaphragm pump has the advantages of large suction range, adjustable flow, absolute fire and explosion protection. It is an excellent aluminum alloy diaphragm pump.

AOK15-AL Product Description


The pump which suitable is a good one. Looking for something light and efficient air pump? Value for money? Send us your requirements and pumping medium, we will recommend that suitable model and make good solutions for u.

We use imported raw materials to keep the pump performance and quality, get good feedbacks always.

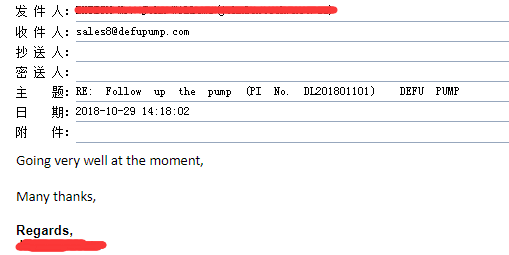

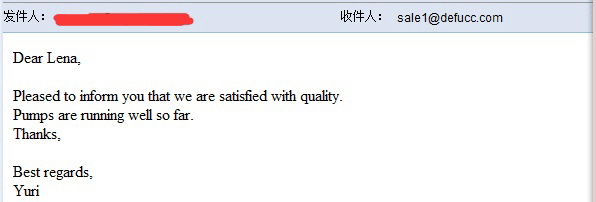

Customer Feedback Customer Feedback

AODD Pump Key Features

 ·Run Dry

·Self Priming Function

·High Pressure to 8.4bar

·Temperature to 176

 Main Applications of Air Diaphragm Pump

 Shipping Industry:

-Pumping a variety of sewage, oil for oil tankers, barges, etc.

 Paint Industry:

-Pumping a variety of paints, resin, etc.

 Mining Industry:

-After oil well drilling, pumping sediment, pumping water or mud out of mines, trenches, and tunnels, mineral processing, slag, cement grout, mortar, etc

 Environmental Protection & Wastewater Treatment Industry:

-Pumping a variety of sewage, mud, and slurry. AOK air operated diaphragm pump also can be matched with plate-and-frame filter press for sewage treatment.

Hot Aluminum AODD Pump AOK15:

Model

AOK15



Inlet/ Outlet size

mm

15

inch

1/2

Flow Rate



m3/h

3.42

L/min

57

Head (m)

84

Max. Suction Lift (m)

7.6m (wet) ;4m(dry)

Max. Particle Diameter (mm)

2.5

Max. Air Pressure (kg/cm²)

8.4

Max. Air Consumption (m³/min)

0.56

Diaphragm Material

Teflon, Santoprene, Viton, Buna-N etc

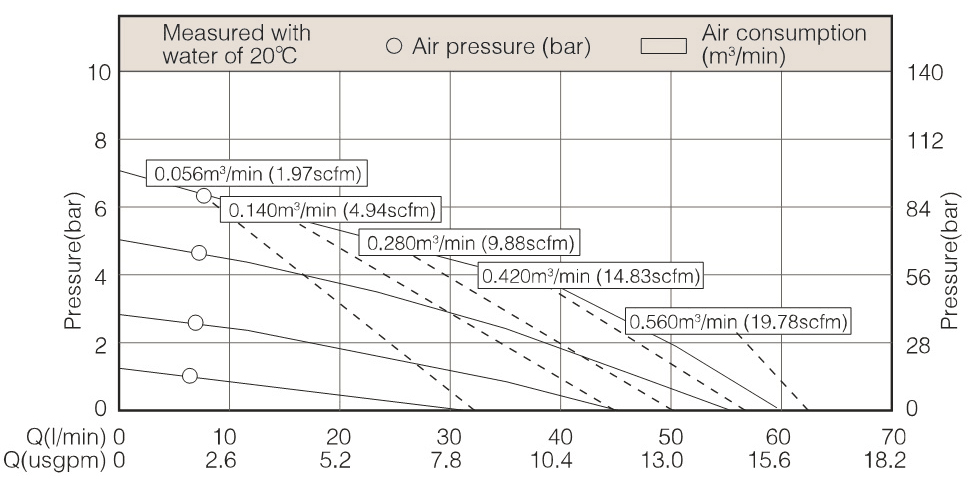

Performance curve:

Performance Curve

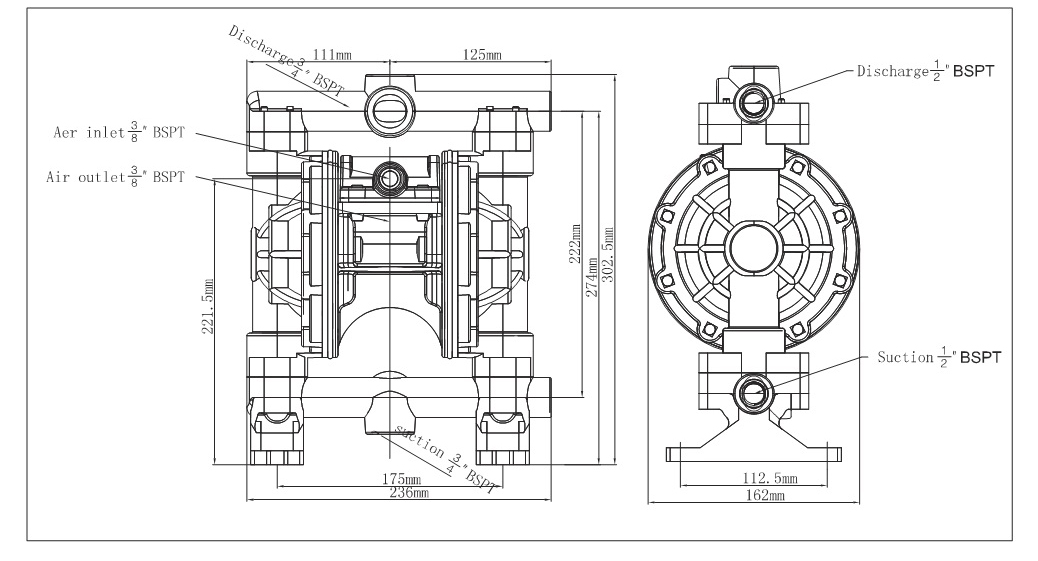

Installation size:

Installation Size

Pump Spare Parts:

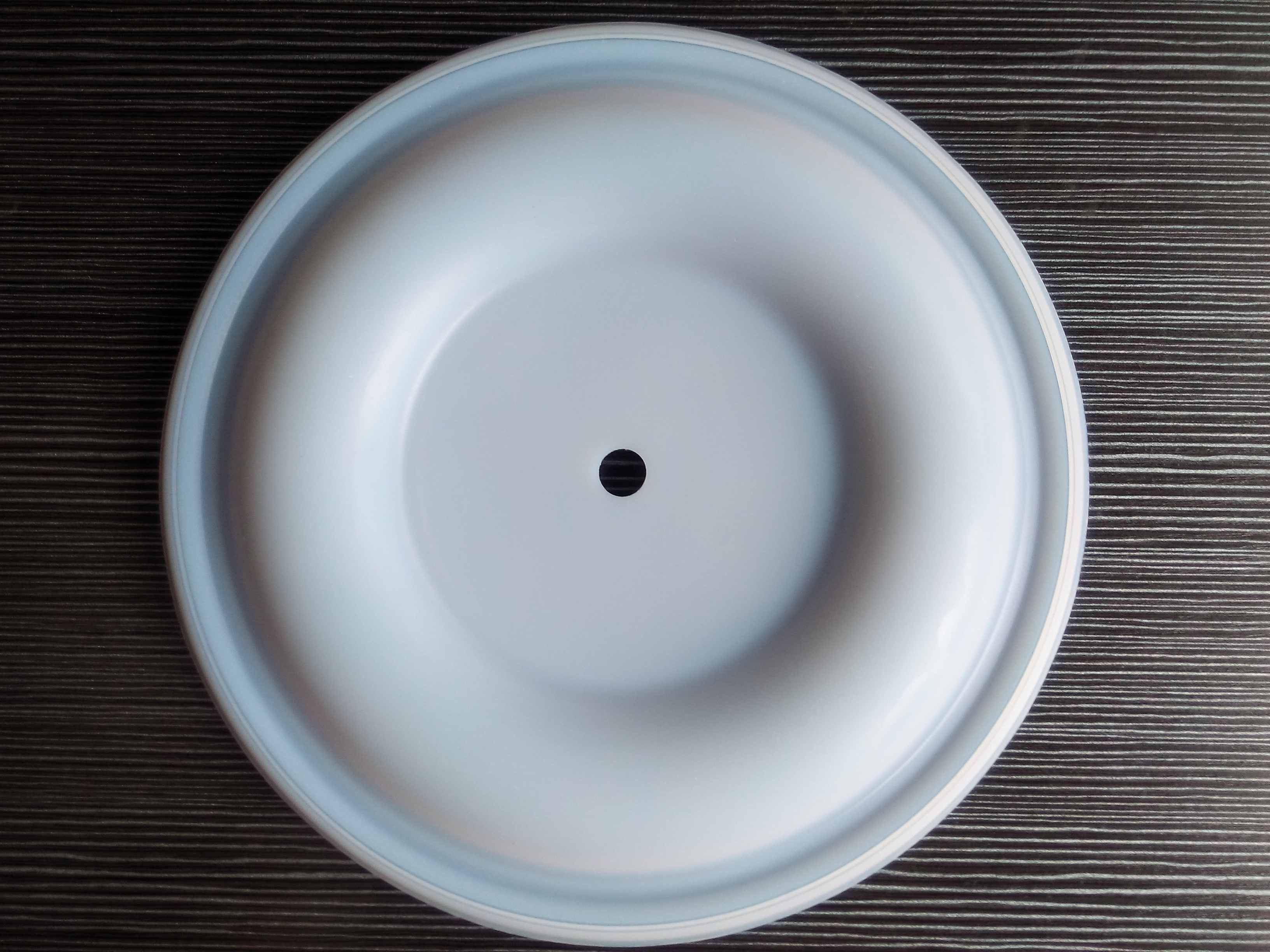

Diaphragm

Diaphragm

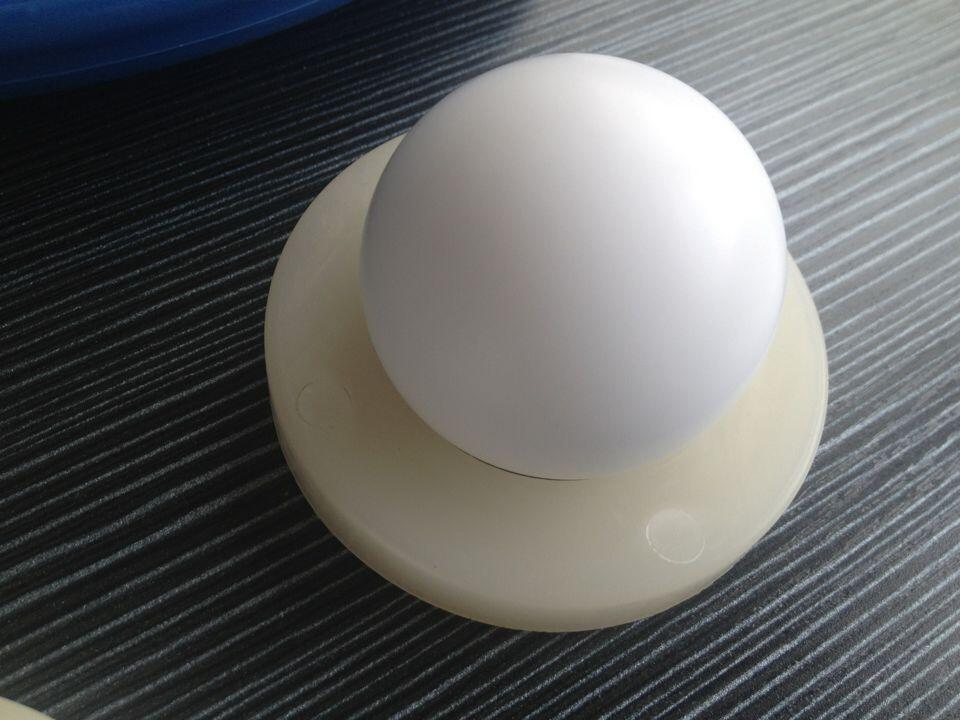

Valve ball and valve seat

Valve Ball And Valve Seat

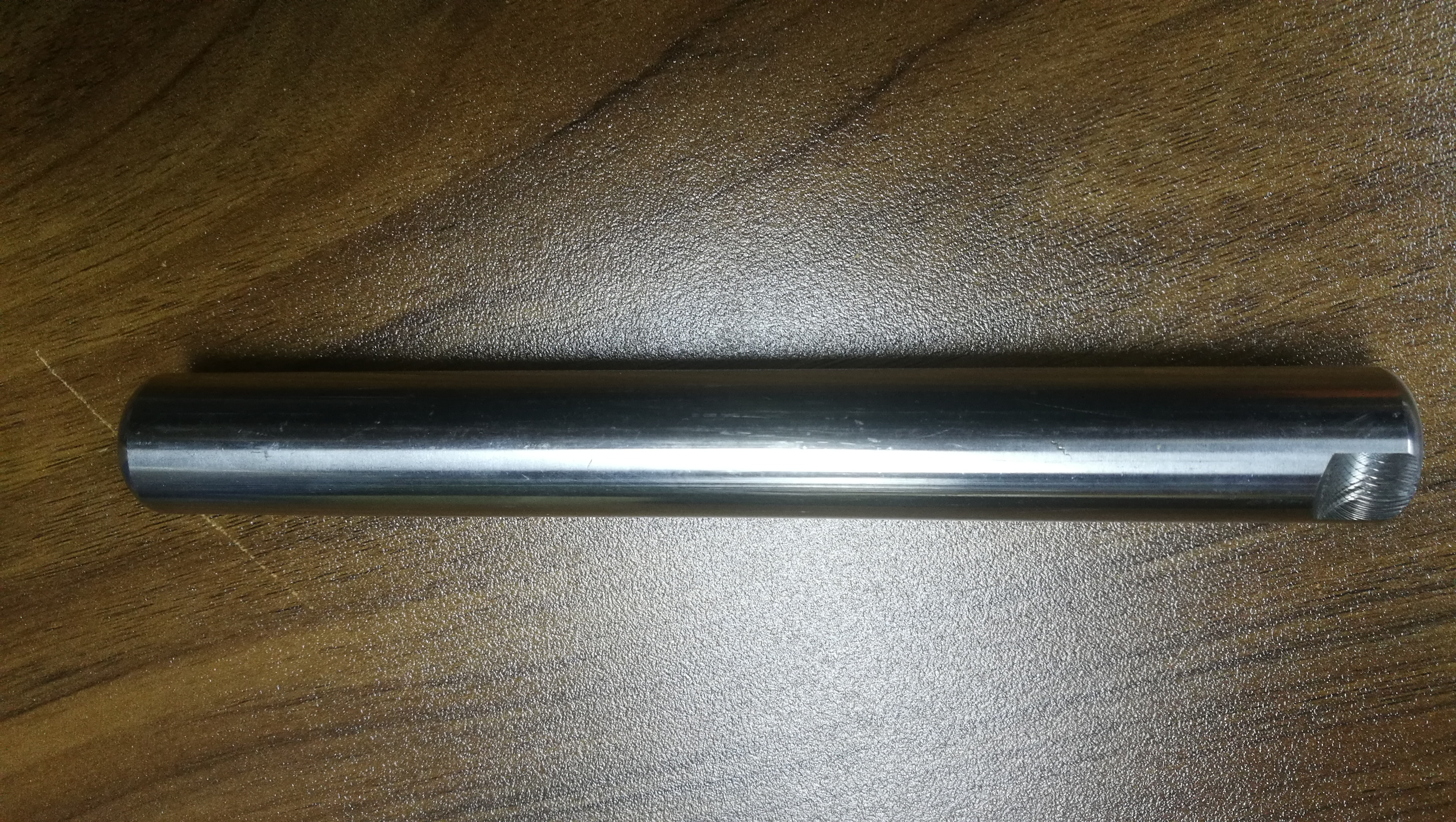

Diaphragm rod (shaft)

Diaphragm Rod (Shaft)

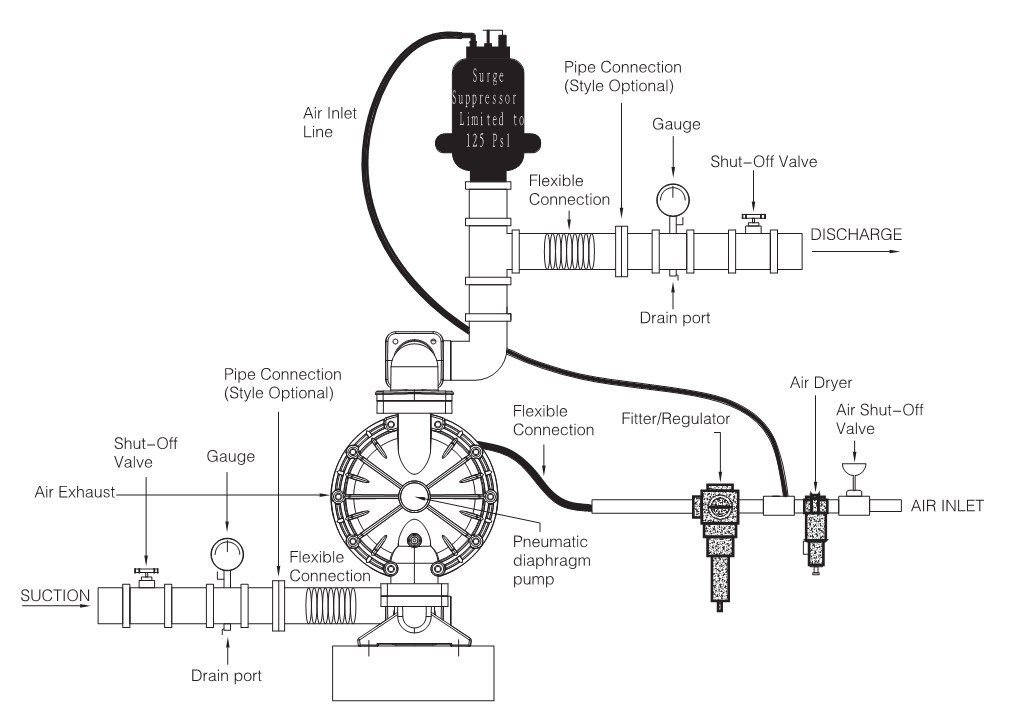

 Typical Installation Guide

Typical Installation Guide

More Options ( Parameters Table):

Model

Flow

(m³/h)

Head

(m)

Suction Stroke(m)

Max.Particle Dia. (mm)

Max. Air Pressure (kg/cm²)

Max.Air Consumption (m³/min)

AOK06/10

0-1.62

0-70

6.4

1.6

7

0.14

AOK-15

0-3.42

0-84

7.6

2.5

8.4

0.56

AOK-25

0-9.42

0-84

8

4

8.4

1.12

AOK-40

0-21.48

0-84

8

5

8.4

2.24

AOK-50

0-35.22

0-84

8

6

8.4

2.8

AOK-80

0-63.6

0-84

8

9.4

8.4

9.8
