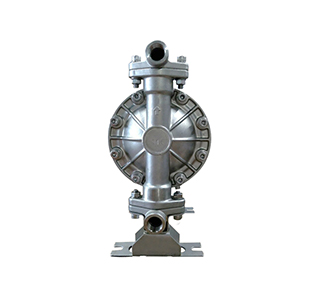

AOK Air Operated Diaphragm Pump

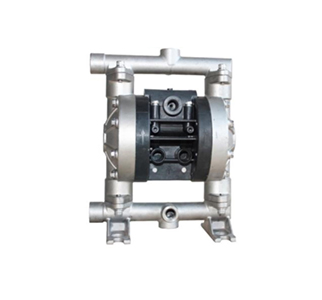

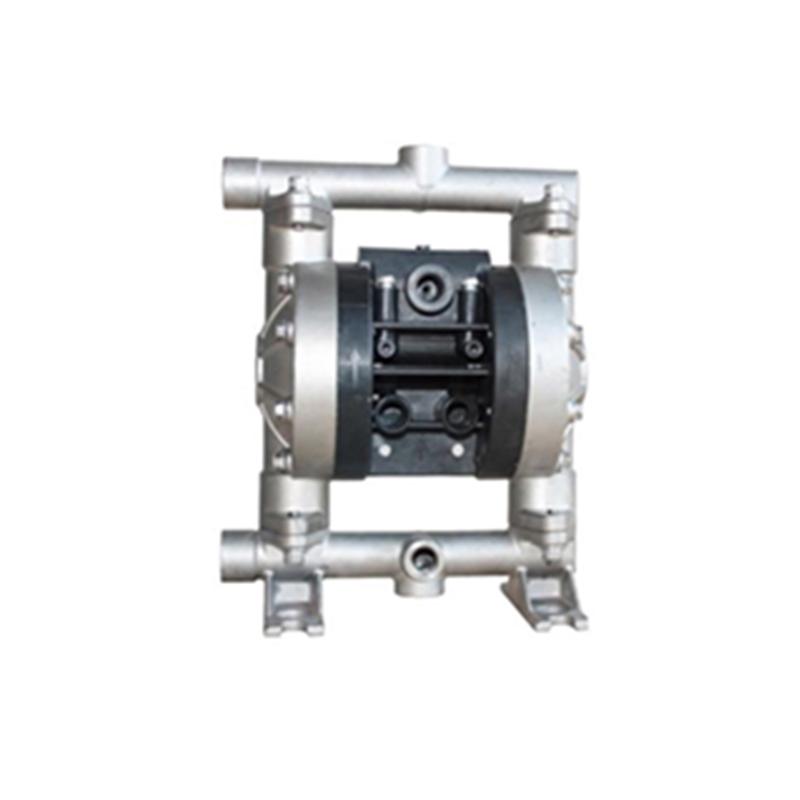

Stainless Steel SS304 Air Operated Diaphragm Pump AOK06/10

AOK0610- Stainless steel pneumatic diaphragm pump using imported raw materials, keep the good performance of the pump. Our 1/4 inch mini pneumatic diaphragm pump can not only transport water, It can also be used as a chemical liquid conveying pneumatic pump.

AOK06/10-SS304 product description:

Stainless steel pneumatic diaphragm pump is also called food sanitary pneumatic diaphragm pump. Its low density, high strength and good plasticity can be used for various corrosive and high viscosity liquids

Applications:

1- Food and beverage industry: Liquid semisolid, pickled vegetable, Wine, juice, small sausage, etc.

2- Paint industry: oil paint, pigment, etc.

3- Chemical industry: various kinds of inflammable and explosive liquid, and highly acidic, basic and corrosive medium.

4- Adhesive and glue industry: all the liquids included in the industry are available.

5- Ceramic industry: various kind of glaze slip for tile, porcelain, brick and pottery.

6- Daily chemical industry: detergent, emulsion, hand cream, surface activator, etc.

7- Pharmaceutical industry: solvent, acid, alkali, ointment, plasma and other kinds of drug liquid.

8- Environmental protection and wastewater treatment industry: this AOK air operated diaphragm pump can be matched with plate-and-frame filter press for sewage treatment.

9- Mine industry: transportation of sediment and ponding in mine, adit and tunnel, as well as the cement grouting and mortar.

10- Marine industry: sewage cleaning on oil tank and barge, and the transportation of high temperature liquid, The maximum liquid temperature can be 150.

AOK06/10 SS304 Air Pump Parameter:

Model

AOK06/10



Inlet/ Outlet size

mm

6/10

inch

1/4 or 3/8

Flow Rate



m3/h

1.62

L/min

27

Head (m)

70

Suction Stroke (m)

6.4

Max. Particle Diameter (mm)

1.6

Max.Air Pressure (kg/cm²)

7

Max.Air Consumption (m³/min)

0.14

Diaphragm

Teflon,Hytrel, Viton, Santoprene, Banu-N, etc.

Check Valve

PP, PVDF, POM

Center block

PP

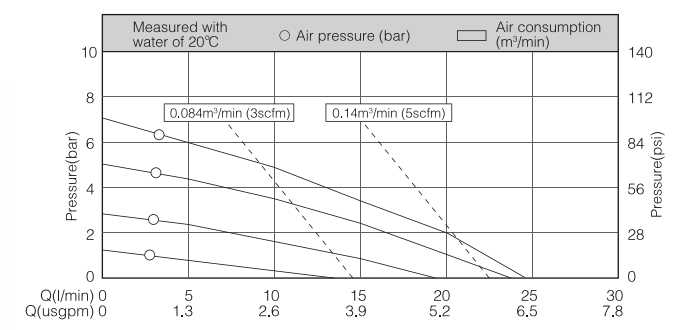

Performance curve:

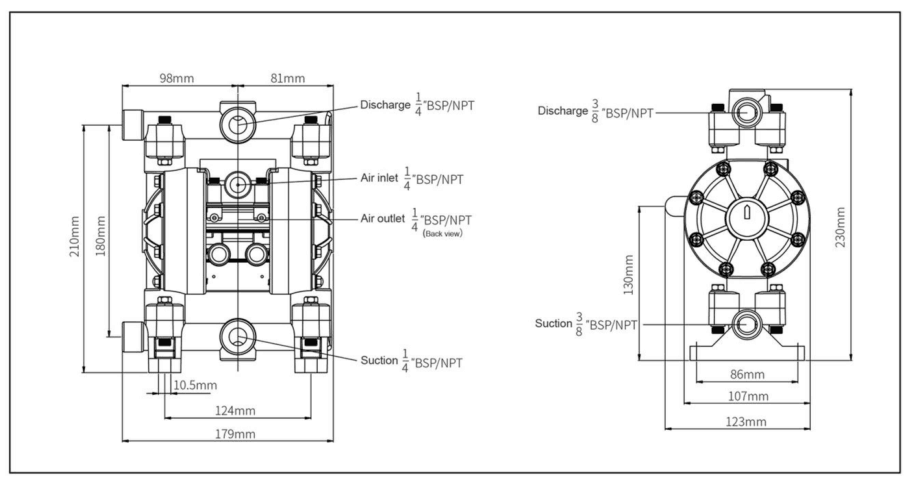

Installation size:

Working principle:

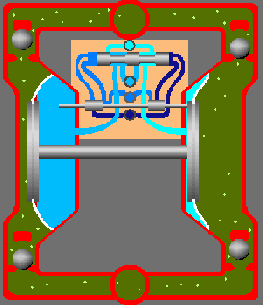

When air pressure is applied to the pump, the main air valve moves up and down. When the main air valve is in the down position, air pressure is diverted to the right diaphragm. At the same time, exhaust air from the left diaphragm passes through the shuttle and shuttle plate, and exits the rear of the pump. When the main air valve is in the up position, air pressure is diverted to the left diaphragm while the right diaphragm is exhausted. This process constantly alternates between the up and down position to create a continuous cycle.

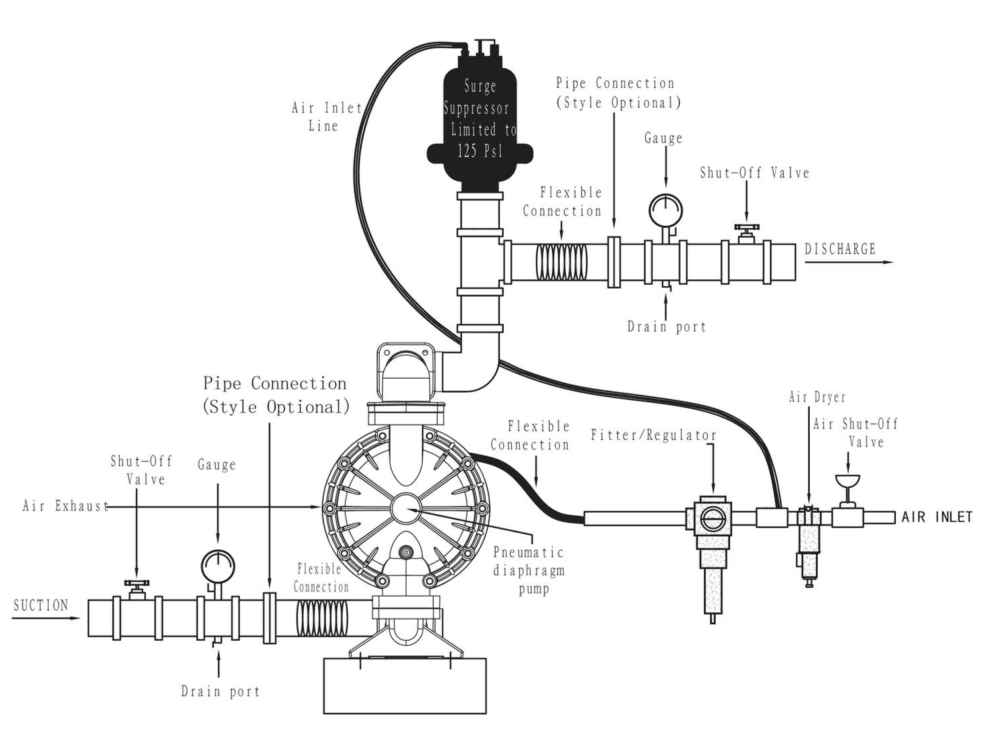

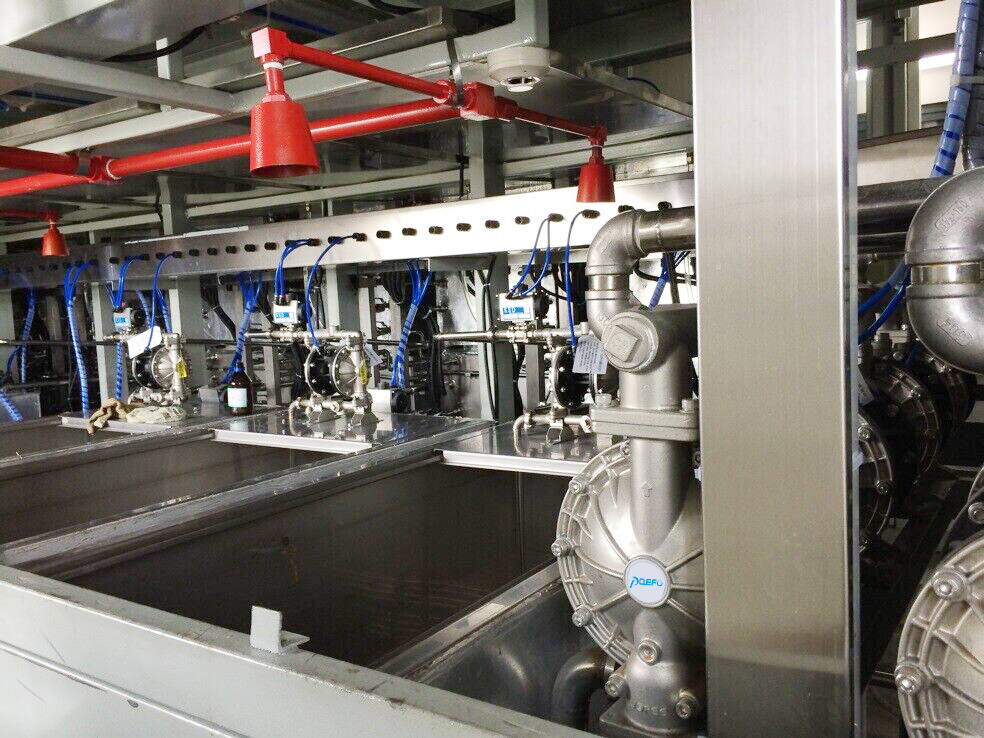

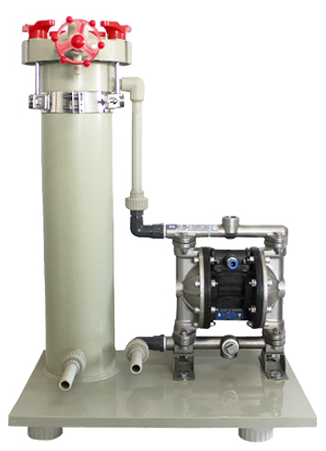

Typical Installation Guide:

Material Table

(More pumping medium pls contact us to confirm the suitable material)

Item

Pump Body

Diaphragm

   Medium

Polypropylene

Aluminum

PVDF

Stainless Steel

Buna-N

Geolast

Viton

Teflon

Chloronaphthalene

×

×



B

D

D

C

A

Acetic Acid _ 50%



×



A

C

C

C

A

Ammonium Bicarbonate



B





A

A

A

A

Ammonium Chloride

A

×

A

B

A

A

A

A

Amyl Borate









A

B

A

A

Aniline Dyes



B



B

C

C

B

A

Barbeque Sauce







A

A

A

D

A

Beer

A

A

A

A

C

A

A

A

Calcium Chloride

A

A

A

A

A

A

A

A

Carbonic Acid (liquid)

A





B

B

A

A

A

Diesel Oil

B

A

A

A

A

C

A

A

Honey

A

A



A

D

A

D

A

Glue

A

A



B

A

A

A

A

Formic Acid

A

×

A

C

C

B

C

A

Lactic Acid

A

A

A

A

B

B

A

A

Hydrochloric Acid 30%

B

×

A

×

C

C

B

A

Sulfuric Acid 50%

A

×

A

×

C

B

A

A

A : Excellent - Recommended ;B : Good - minor to moderate effect; C : Poor - Moderate to severe effect; D : Unsatisfactory - not recommended
