AOK Air Operated Diaphragm Pump

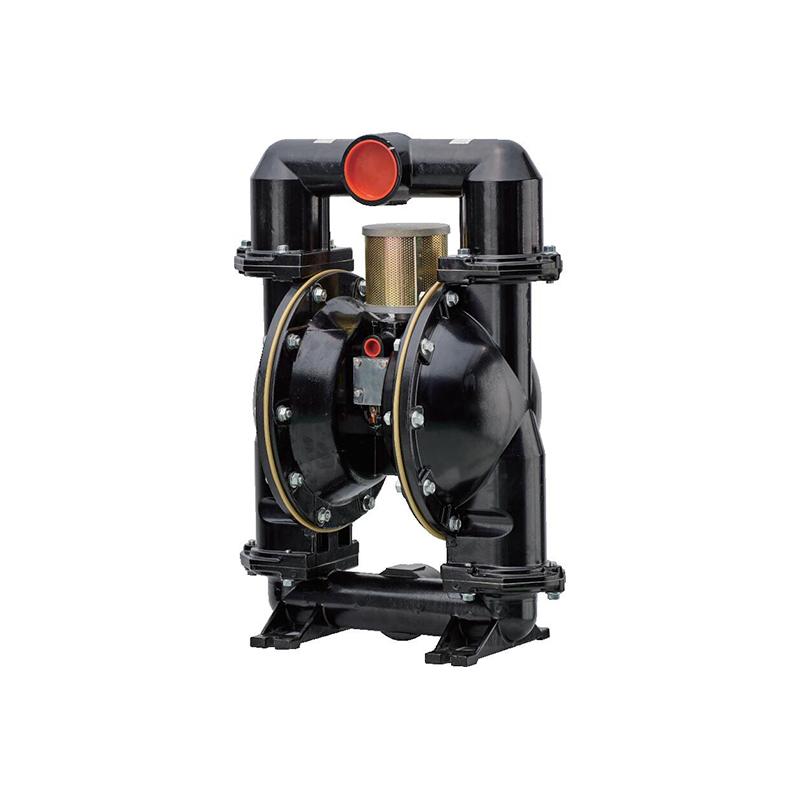

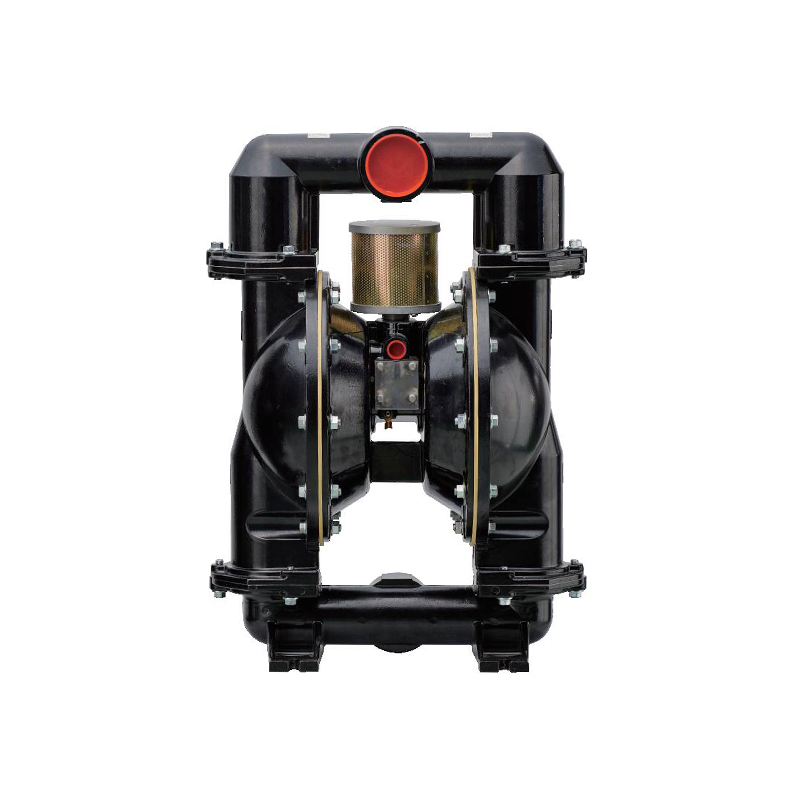

3Inch Mining Usage Air Operated Diaphragm Pump AOE80-540/0.1

3Inch Air membrane pump with high capacity, metal material body good using for mining industry. The air pump has the good self priming function with dry priming and wet priming.

AOE3″Mine pneumatic diaphragm pump series



AOE3″-Mine pneumatic diaphragm pump Performance Parameter:BQG80-540/0.1

3Technical Parameters:

Proportion

1:1

Max Flow

897 L/Min

Displacement per cycle

10L

Air inlet

3/4-14 N.P.T.F-1

Fluid inlet

Rp3

Fluid outlet

Rp3

Max service pressure

0.75 Mpa

Max Particle Diameter

9.5mm

Weight

45Kg

Maximum dry suction height

5.4m

Noise level

Mpa

c.p.m

bd(A

0.5

60

95

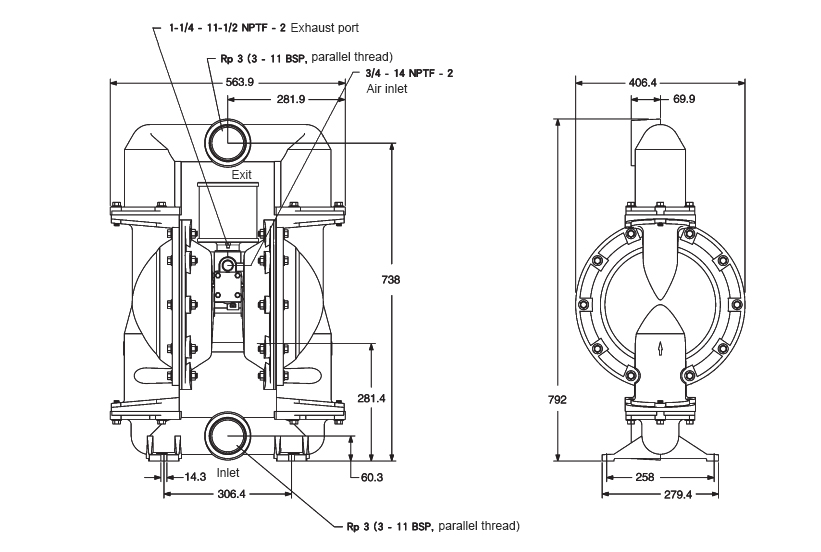

Installation size:
