AOK Air Operated Diaphragm Pump

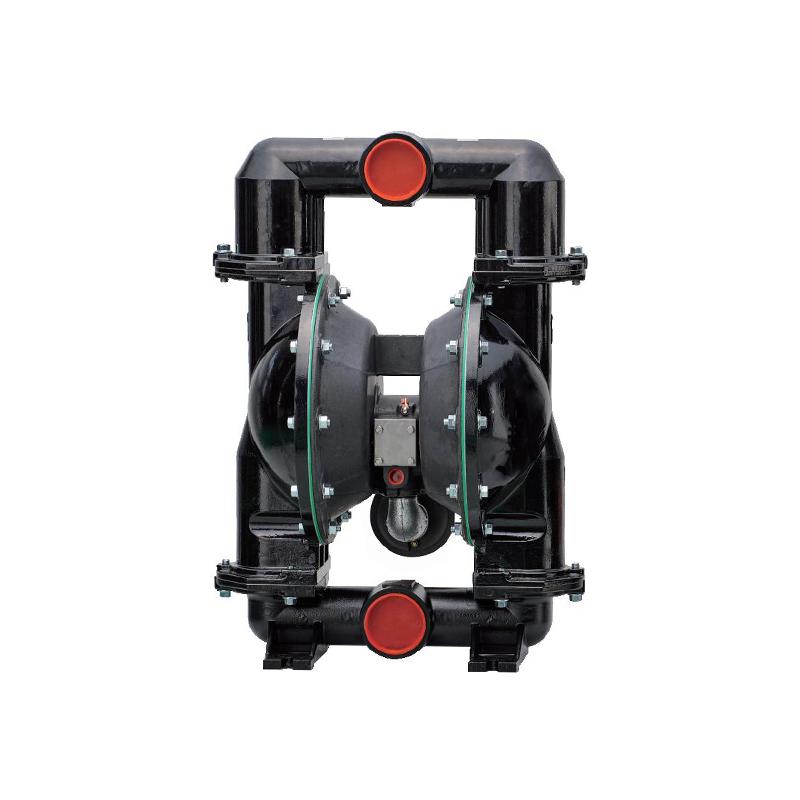

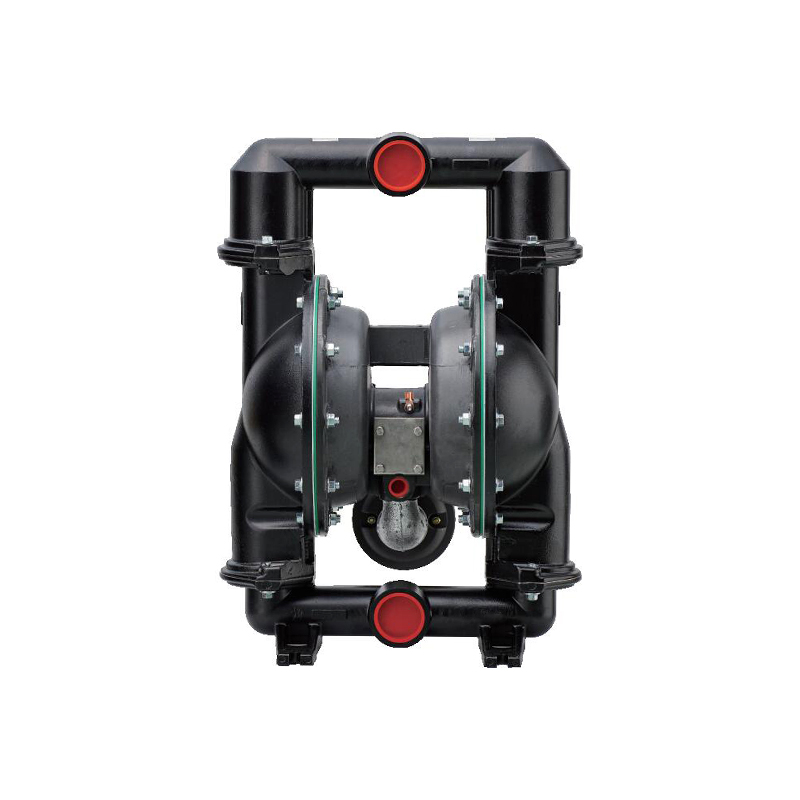

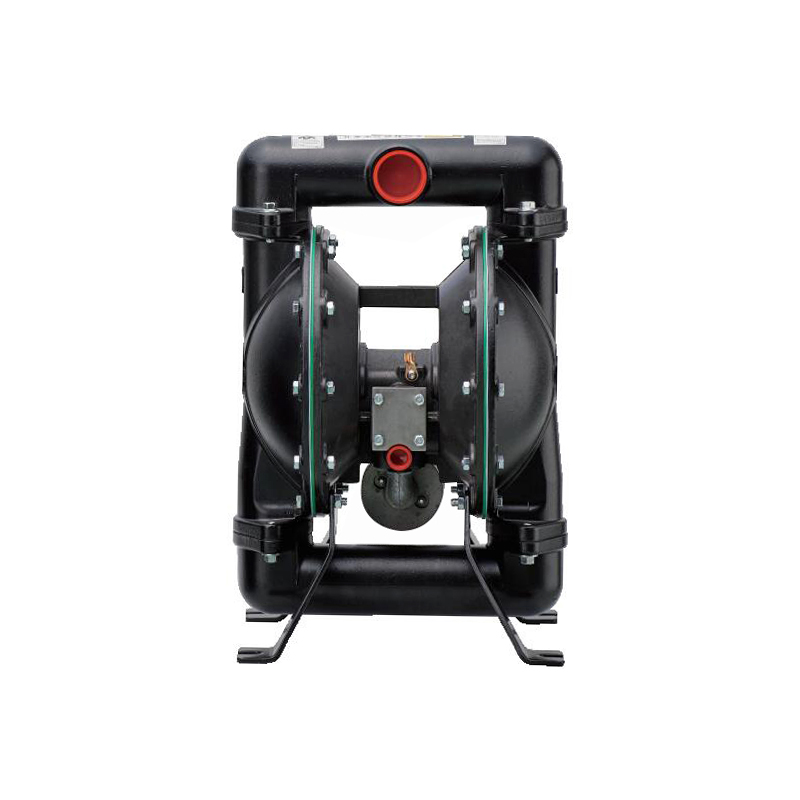

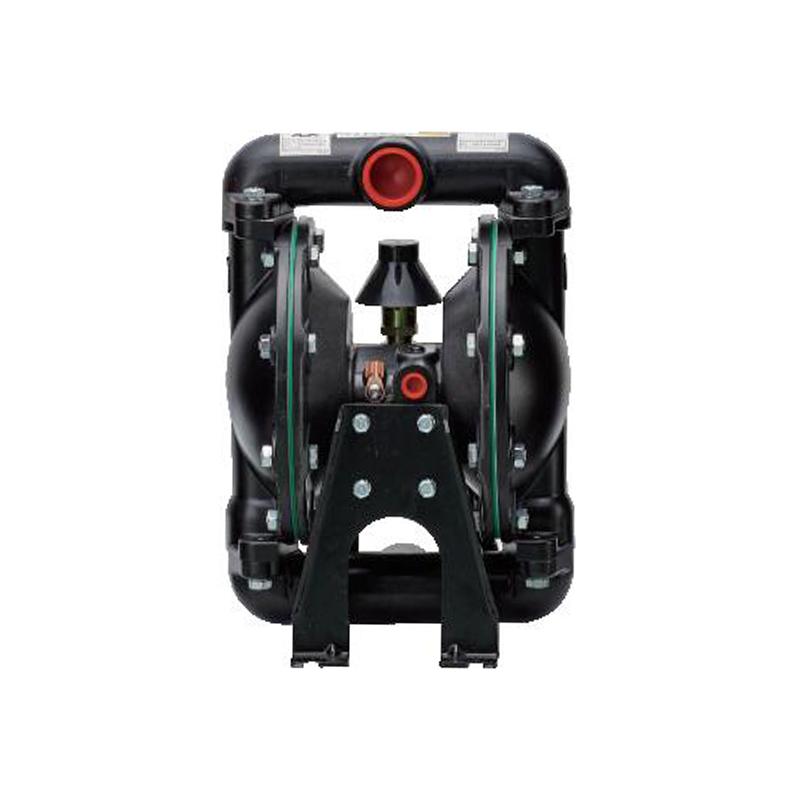

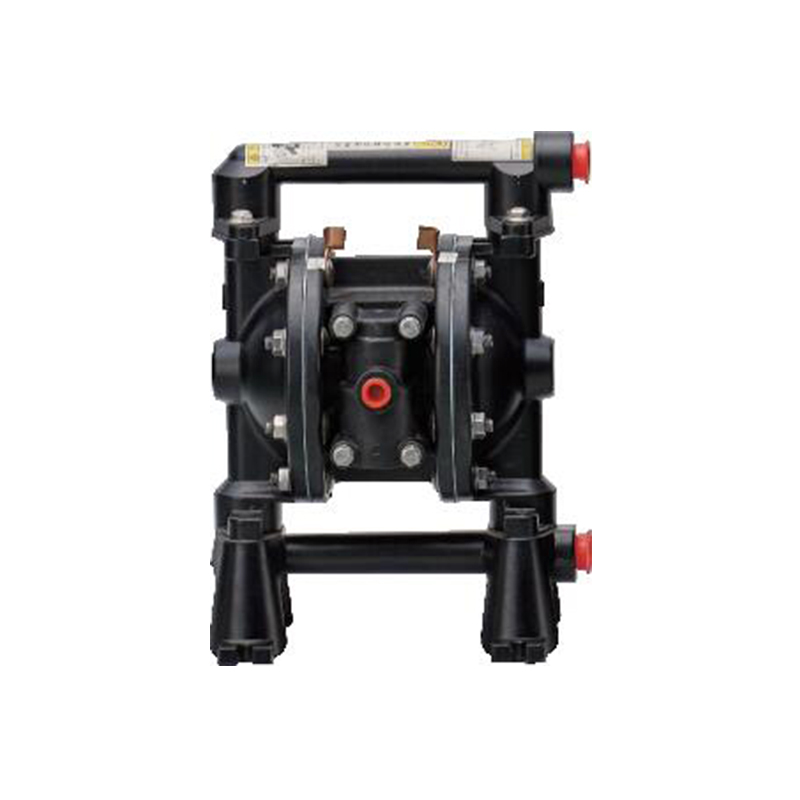

Metal Air Operated Double Diaphragm Pump

Metal diaphragm pump not only can exhaust the flow liquid, but also can convey some uneasy flowed medium, with the merits of self priming pump, slurry pump and impurity pump, etc.

Metal pump series










Model

1/2″

1″

1 1/2″

2″

3

Max flowL/Min

49.2

133

340.7

651

897

Max service pressure

(Mpa)

0.69

0.83

0.83

0.83

0.83

Fluid inlet and outlet dimensionsinch

1/2″

1″

1.5″

2″

3

Motor body material

Polypropylene

Aluminum

Aluminum

Aluminum

Aluminum

Manifold fluid cover material

Aluminum

Stainless steel

Cast iron

Aluminum

Stainless steel

Cast iron

Aluminum

Stainless steel

Cast iron

Aluminum

Stainless steel

Cast iron

Aluminum

Stainless steel

Cast iron

Weight (Kg)

3.8050AXXX6.6050GXXX

6.2050ZXXX

7.9100XAXXXX

13100XGXXXX

13100XZXXXX

19.8150XAXXXX

30.3150XGXXXX

33.2150XZXXXX

27.8200XAXXXX

55.5200XGXXXX

55.3200XZXXXX

45300XAXXXX

86.4300XGXXXX

92.7300XZXXXX

Max Particle Diametermm

2.4

3.2

6.4

6.4

9.5
