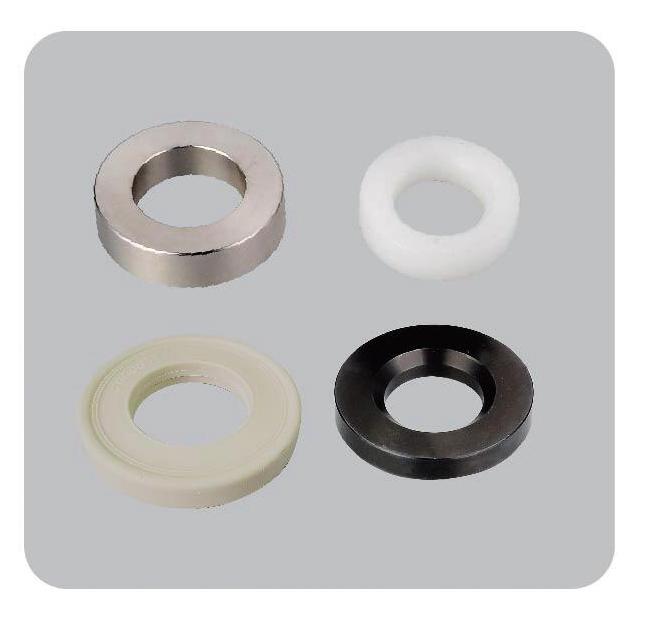

AODD Pump Valve Seat

Diaphragm has Teflon (PTFE), Viton, Buna-n, Neoprene, Santoprene, EPDM, etc. materials. That is imported material, the diaphragm stress of air operated diaphragm pump is reduced to the minimum, and the service life is extended.

The pump body installed with muffler, the delivery head and flow can pass the pneumatic valve open to realize the step less adjustment,  Effectively reduce air duct noise.

The O-ring is also called the sealing ring, It is a kind of rubber sealing ring with circular cross section, which is the most common mechanical design for sealing.

The role of connecting rod is to connect the piston and the crankshaft, so that the reciprocating linear motion of the piston into the rotary motion of the crank, in order to output power.

The valve ball materials are Teflon, Santoprene, EPDM, ect. It has a very low friction coefficient, excellent self-lubrication, good corrosion resistance, dimensional stability, and no deformation.

Pneumatic coupling refers to air filter and pressure reducing valve. The pressure reducing valve can stabilize the pressure of the gas source, so that the gas source is in a constant state, which can reduce the damage to the valve or actuator and other hardware when the air pressure of the gas source changes abruptly. The filter is used to clean the air source. It can filter the water in the compressed air and avoid the water entering the device with the gas.

AOK50 PVDF self priming AODD pump is easy to use, reliable and simple to operate. When the 2inch PVDF air powered diaphragm pump accident will automatically stop, with good self-protection performance. When the AOK50 pneumatic diaphragm pump everything back to normal, and can automatically start running.

Our AOK50 PP high flow flap valve pneumatic diaphragm pump can be called the Large solid particle flap valve diaphragm pump, it can pass through the larger solid particles. the use of the AOK50 PP flap valve waste water diaphragm pump even in bad working conditions, the impurities of sewage or complex liquid medium, is not easy to plug.
