AOK Air Operated Diaphragm Pump

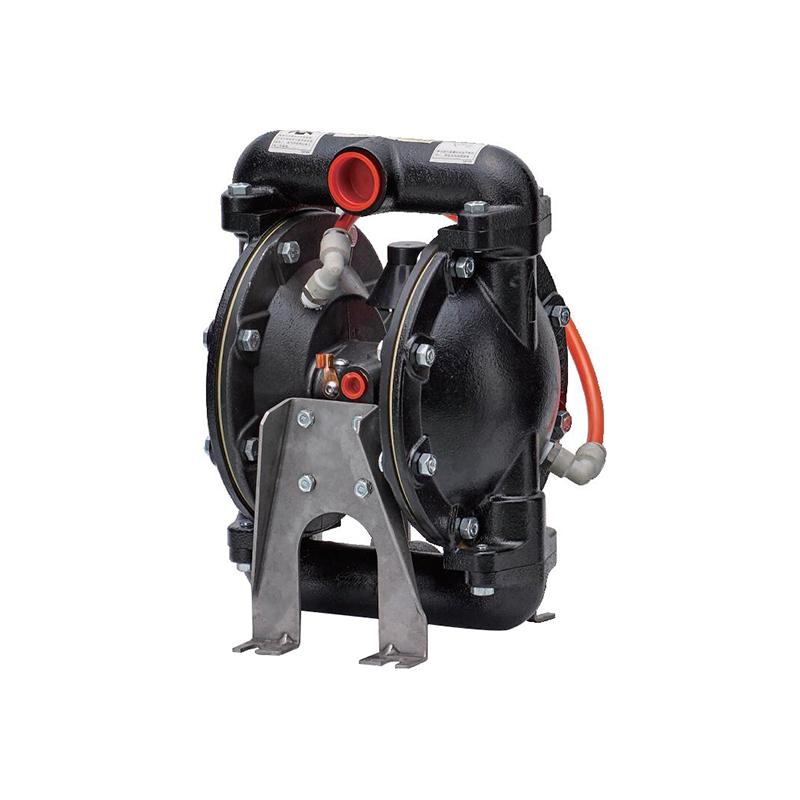

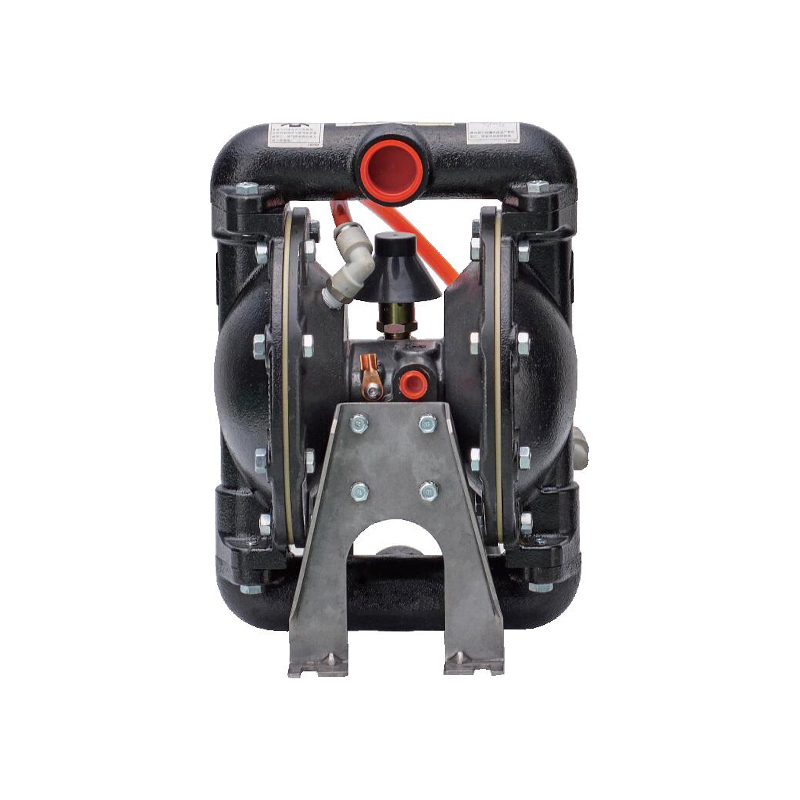

1 Inch Booster Air Operated Diaphragm Pump AOE25B

1Inch booster Air operated membrane pump is often used for sewage, slurry, gasoline, and diesel oil etc. With high pressure and high capacity, has the self priming function with wet priming 8m.

1 Inch Booster Air Operated Diaphragm Pump

Booster Pump Performance Parameter:

1 Inch Booster Pump Performance Parameter

Start up pressure(Mpa)

0.08

Air supply pressure(Mpa)

0.08

0.1

0.15

0.2

0.25

0.3

0.35

0.4

0.45

0.5

0.6

Service pressure(Mpa)

0.06

0.08

0.12

0.16

0.2

0.25

0.3

0.35

0.4

0.45

0.55

Outlet pressure(Mpa)

0.15

0.195

0.28

0.34

0.46

0.58

0.66

0.76

0.86

0.9

1.08

Flow(m³/h)

13.3

1.3

2.1

2.9

3.4

3.8

4.2

4.4

4.5

4.6

4.8
